Challenger CSB-V12

The CSB-V12 sets the standard for vented 12 inch subwoofers.

Available in

Selected variant is no longer in production.

Specifications

Challenger CSB-V12 Challenger CSB-V12 Challenger CSB-V12 Challenger CSB-V12

Dynavoice Challenger CSB-V12

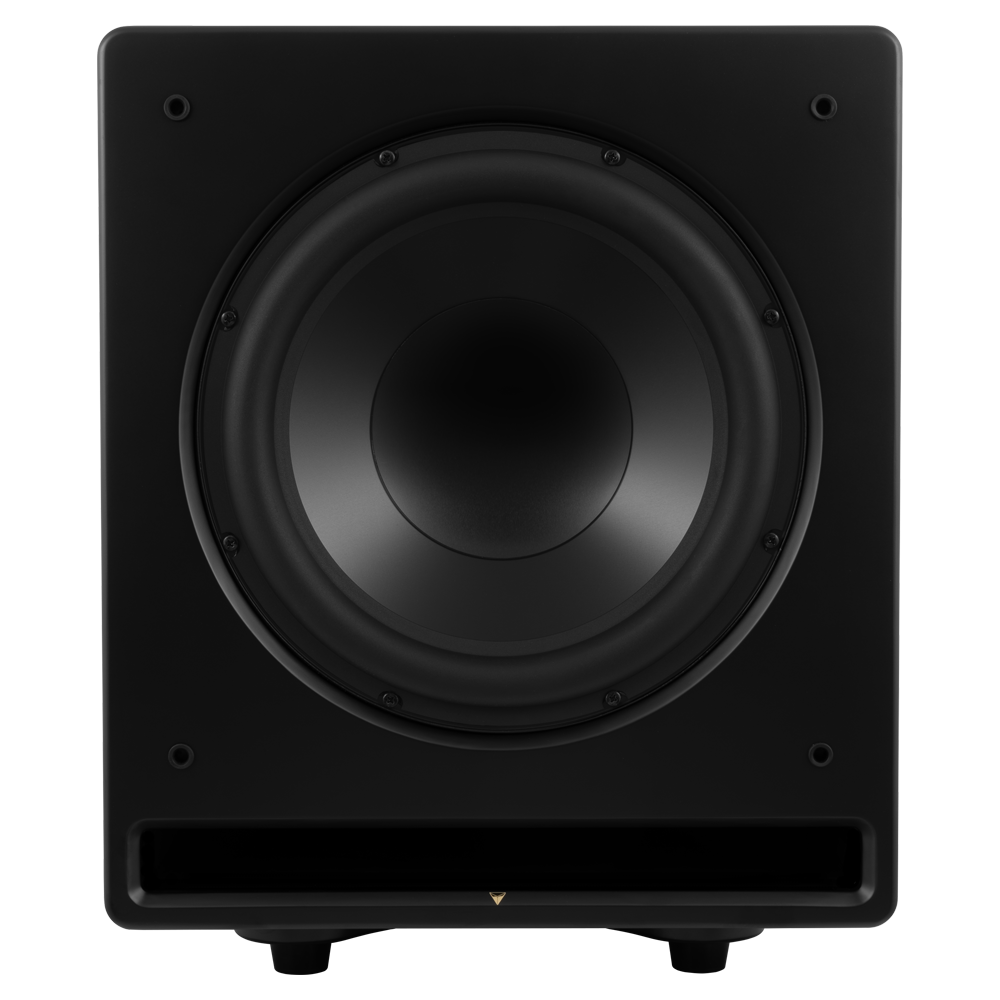

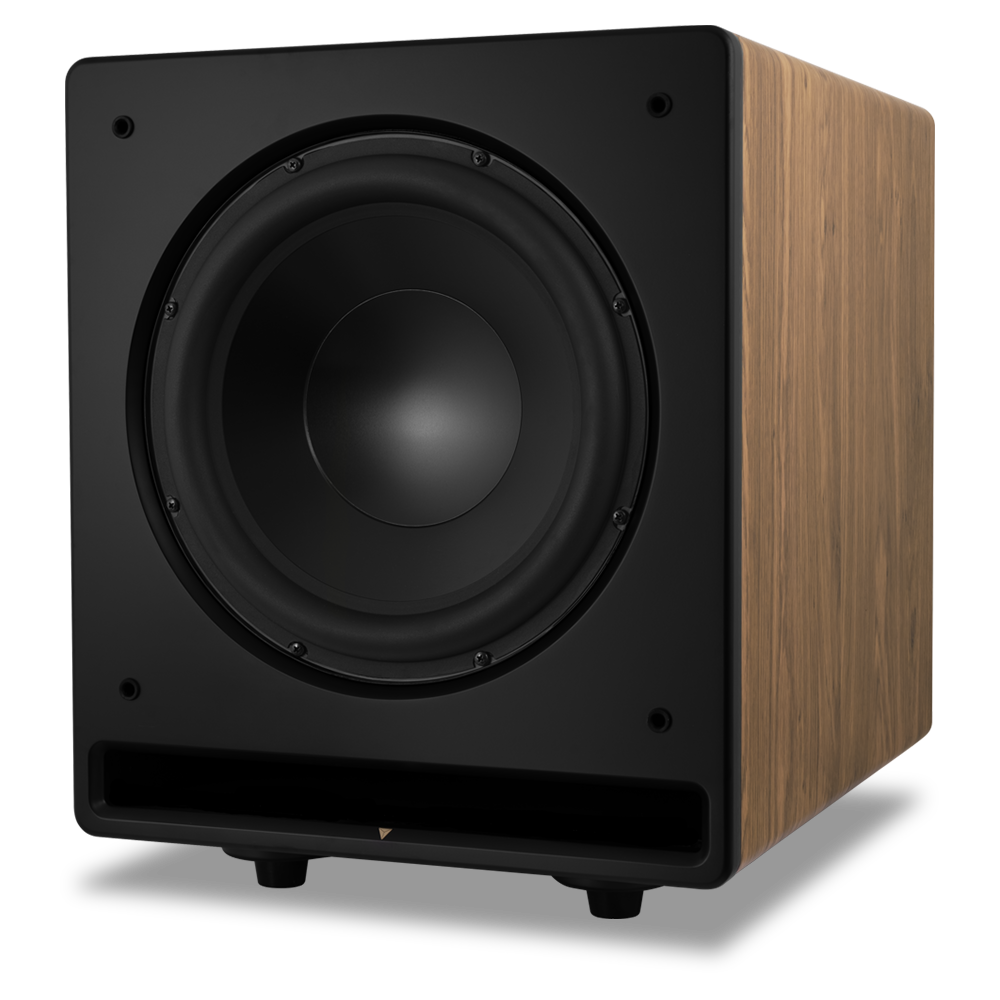

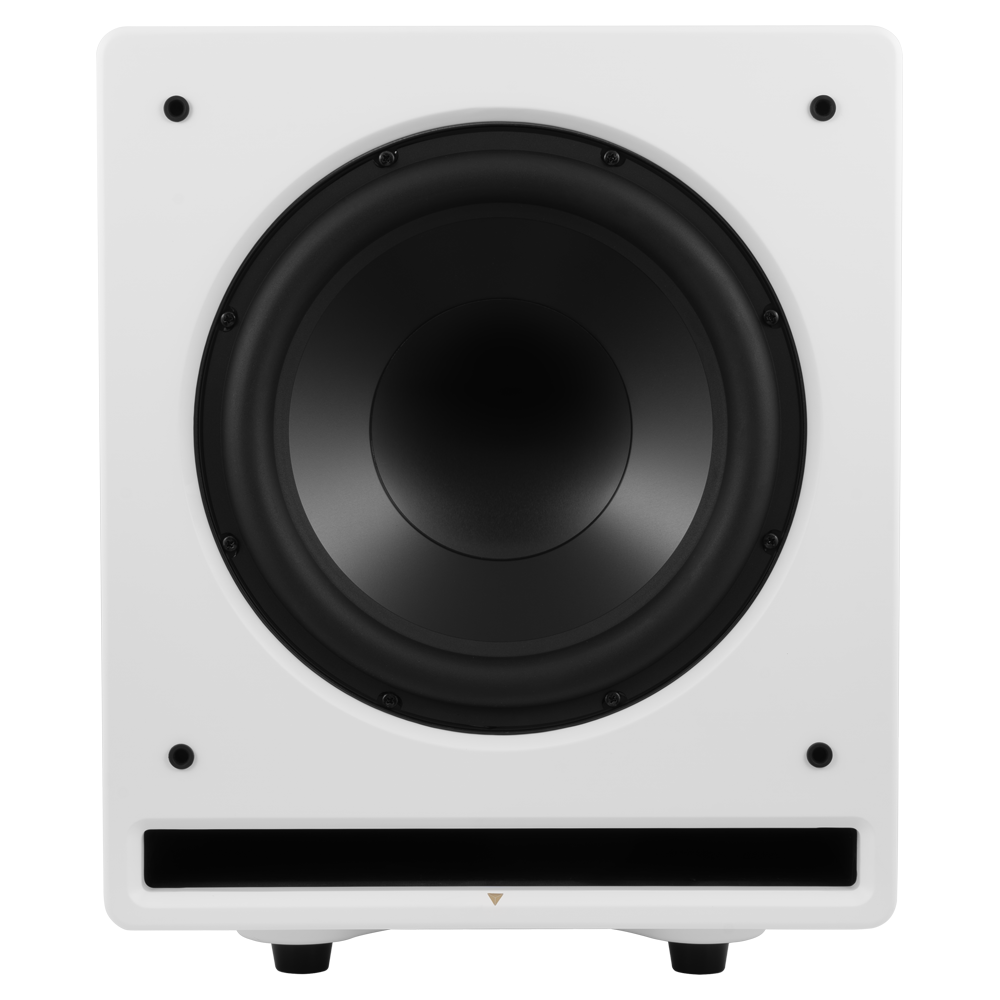

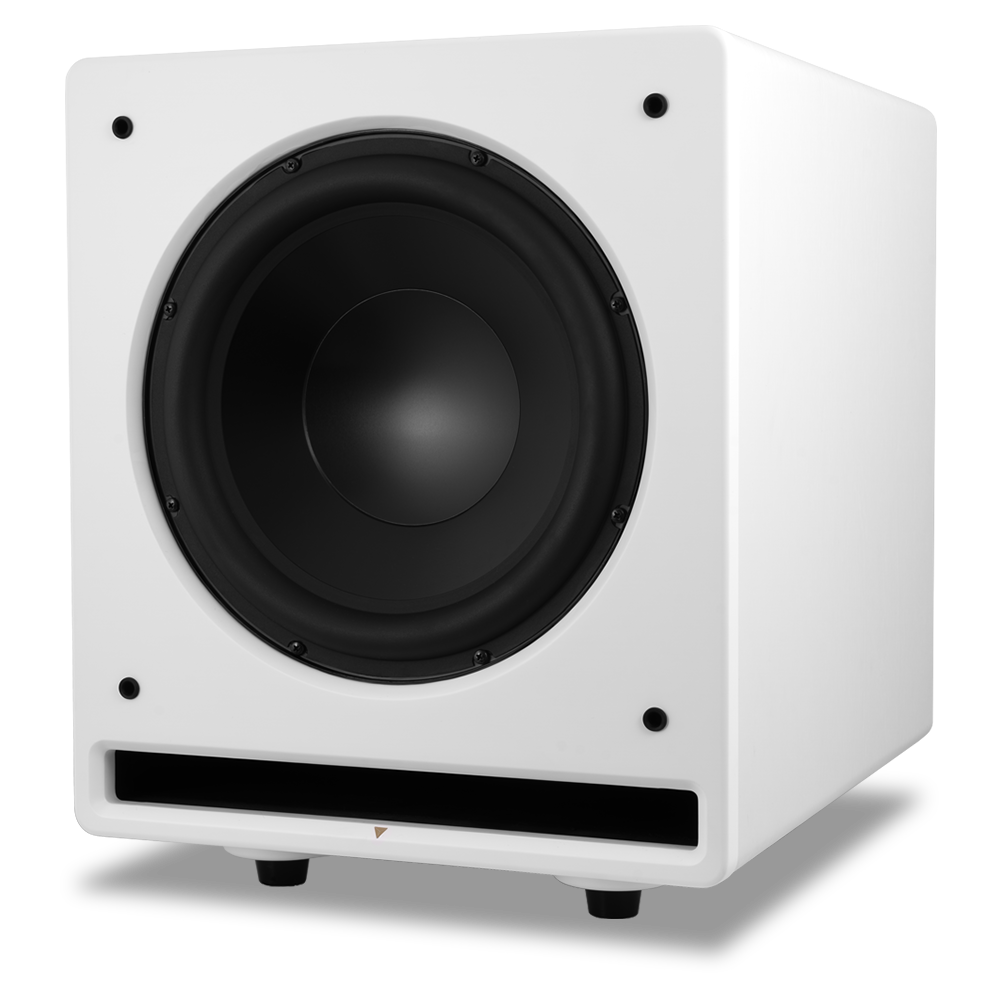

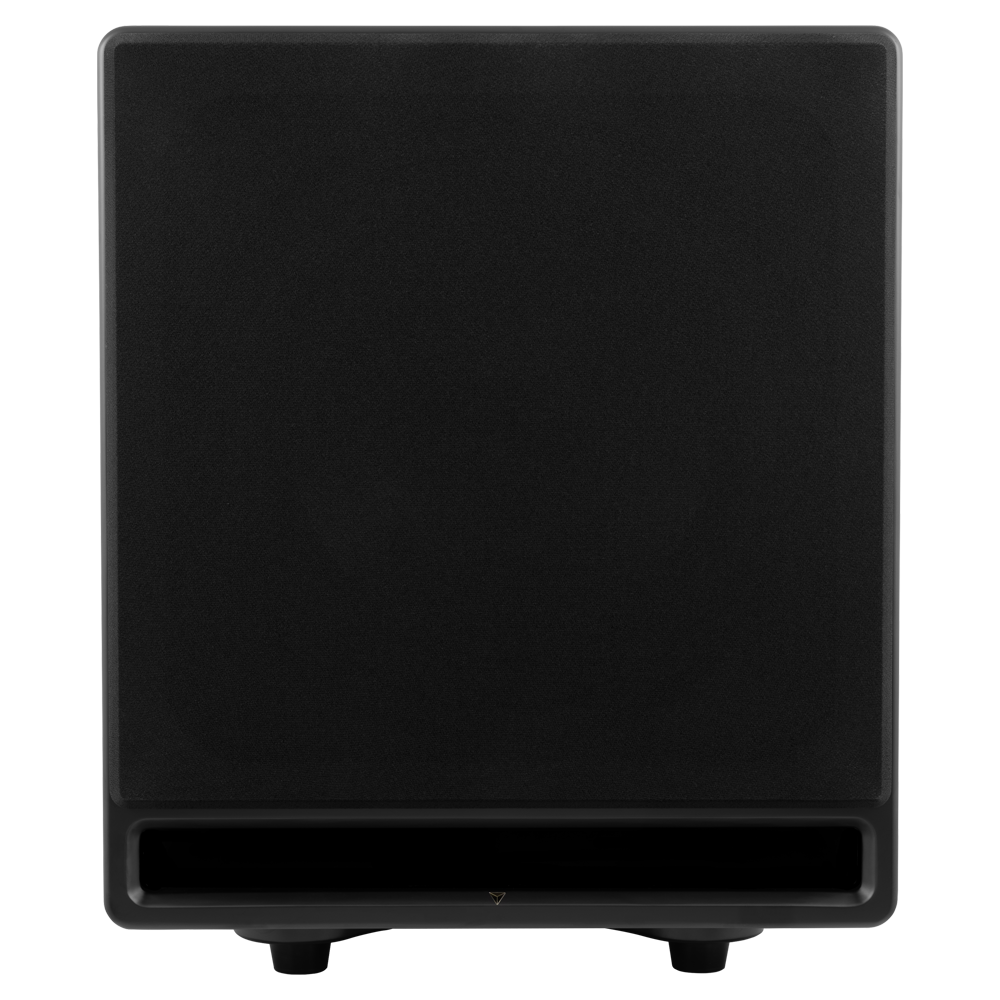

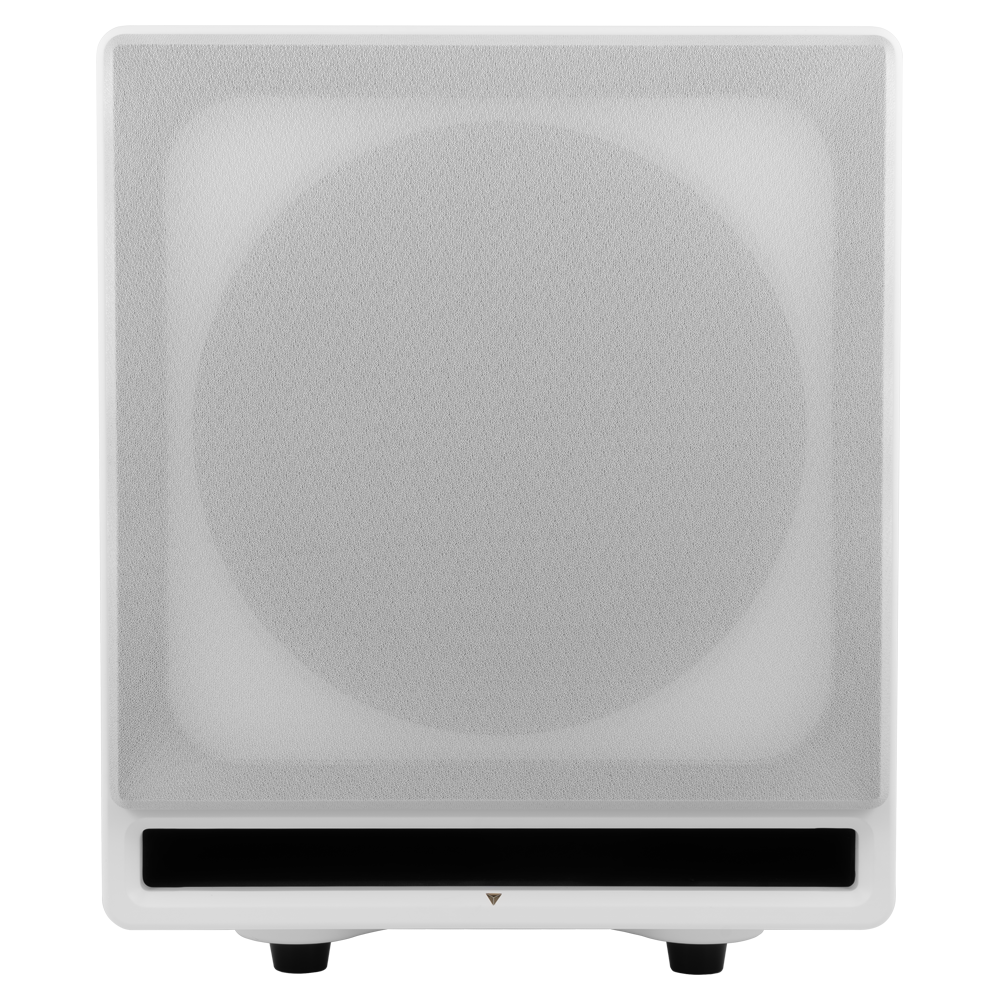

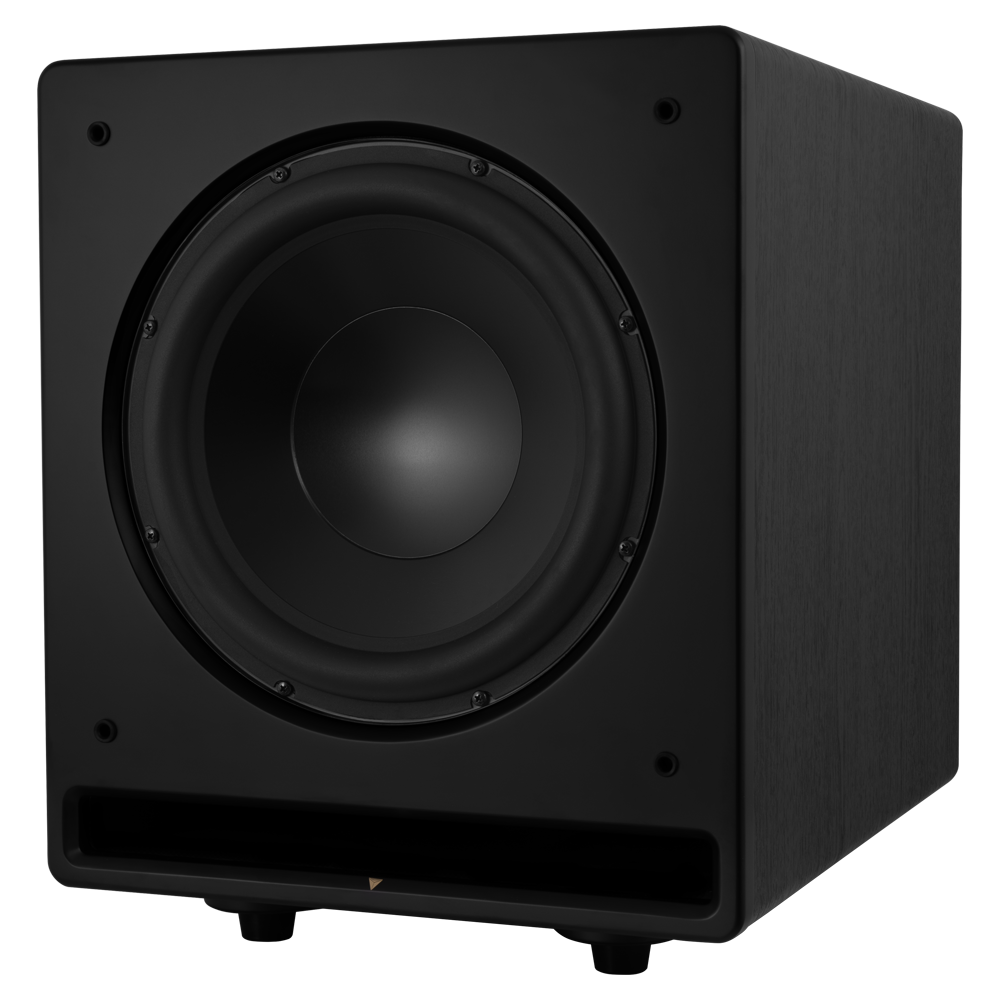

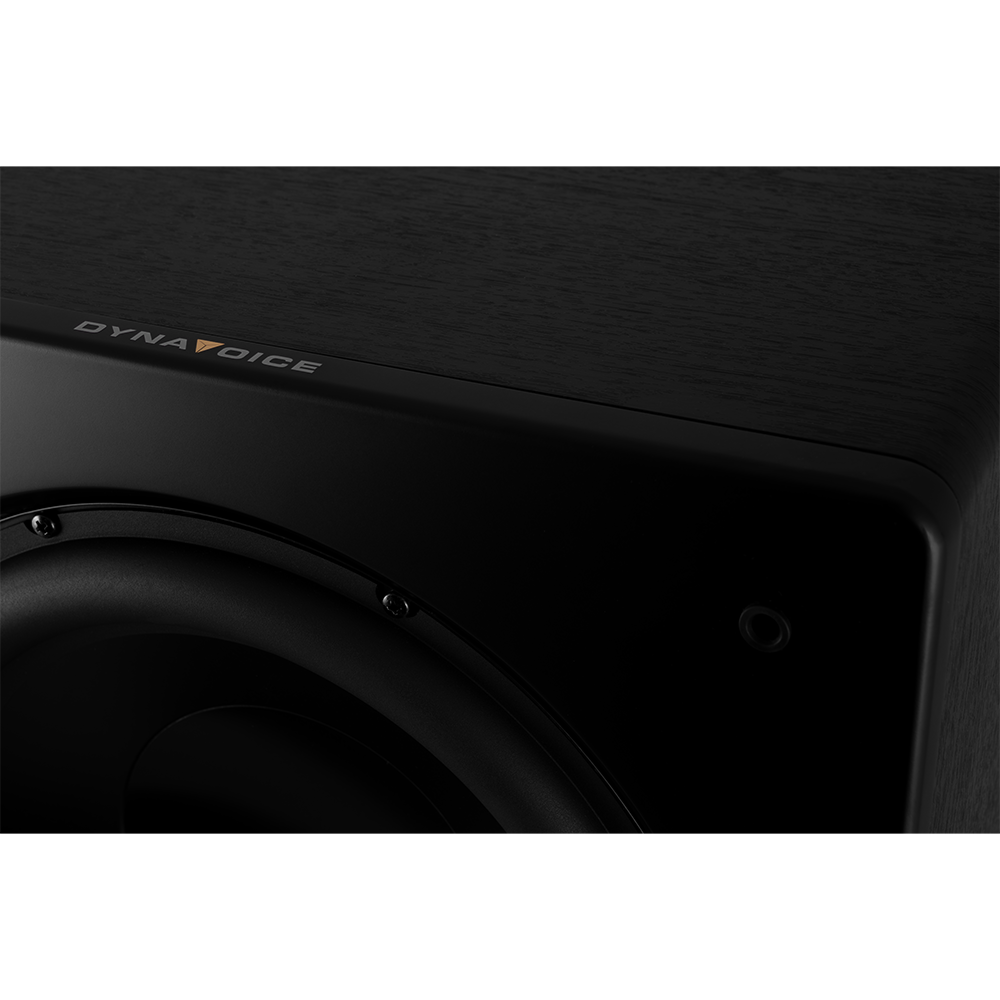

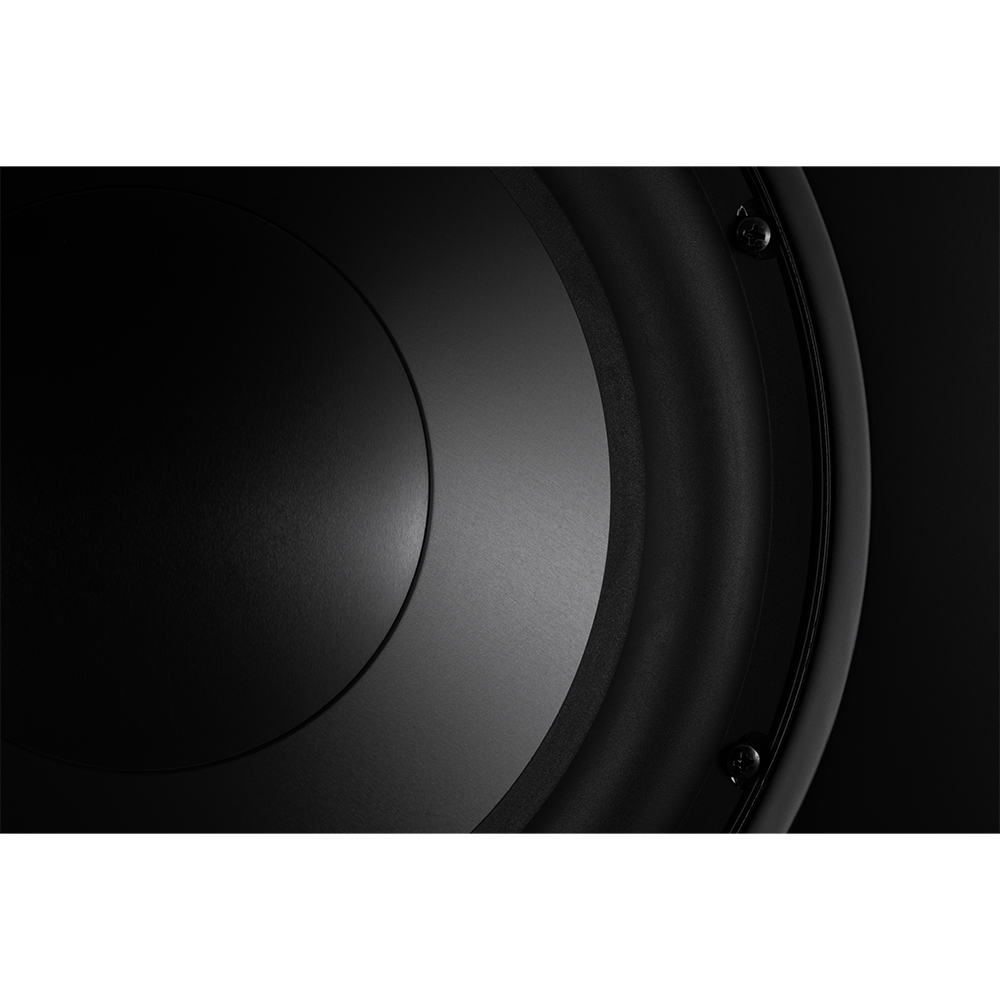

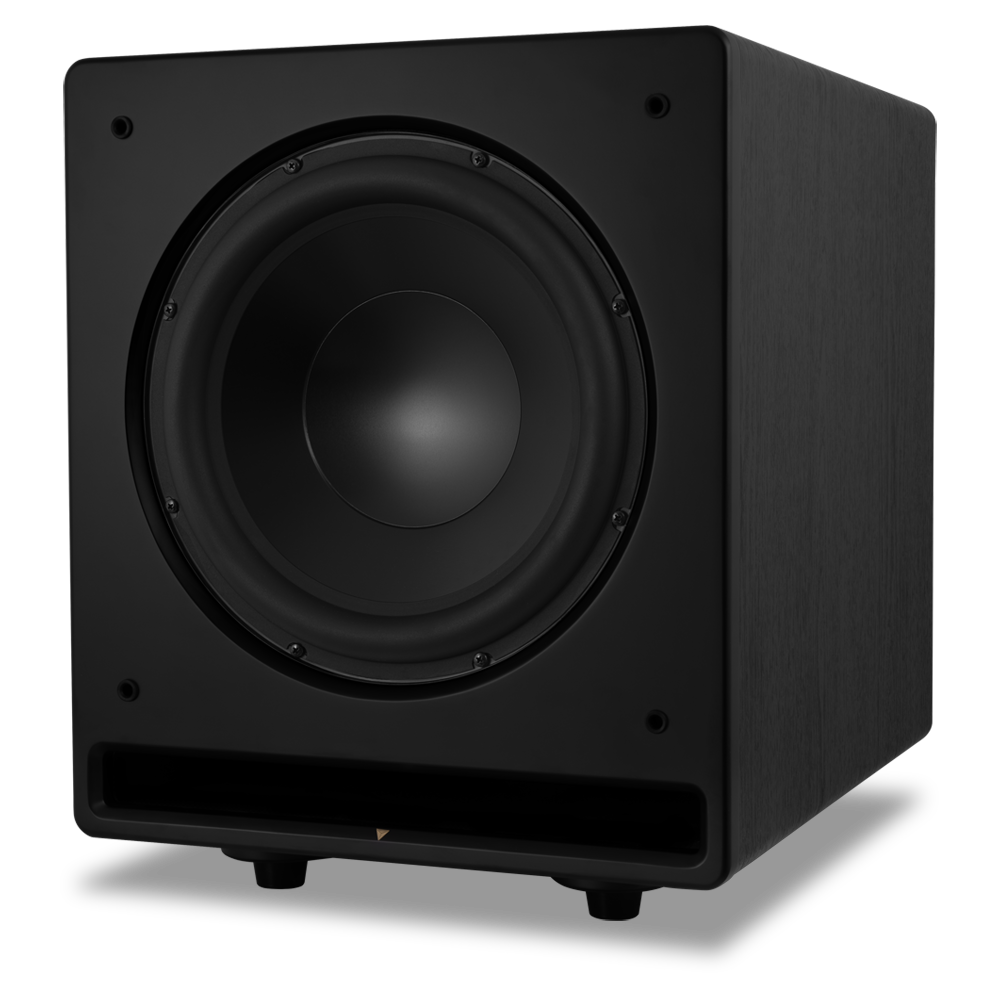

The Challenger CSB-V12 is a versatile and musical powerhouse. This high-performing subwoofer has a Klippel™-optimized woofer with aluminium cone, dual cooling systems and a cabinet made out of HDF with a front that is almost four centimetres thick. The front-ported design gives it a higher sensitivity and the robust cabinet combined and the many features makes it ideal for any type of stereo and home cinema setups.

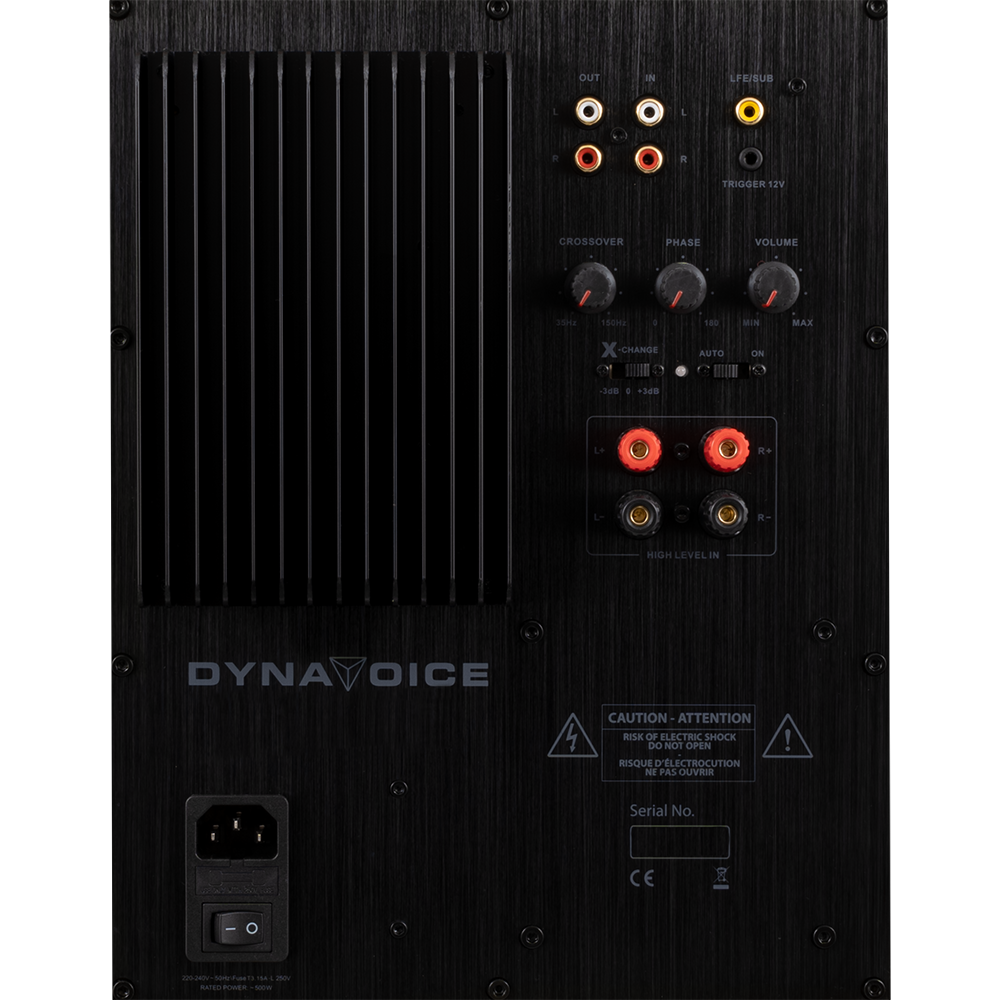

The class A/B amplifier makes the CSB-V subwoofers extremely versatile. They have both RCA/LFE inputs and the RCA output makes it easy to link two (or more) subwoofers together. The high-level input allows you to connect the subwoofer directly to your amplifier speaker cables, and the 12V trigger connects to your pre-amp if you have one in your setup.

The CSB-V subwoofers are equipped with Dynavoice X-Change, a parametric equalizer that lets you adjust the critical 63Hz frequency -3dB, 0dB or +3dB. Together with the built in crossover and the phase control you can fully adapt the sound to your surroundings and your own listening preferences.

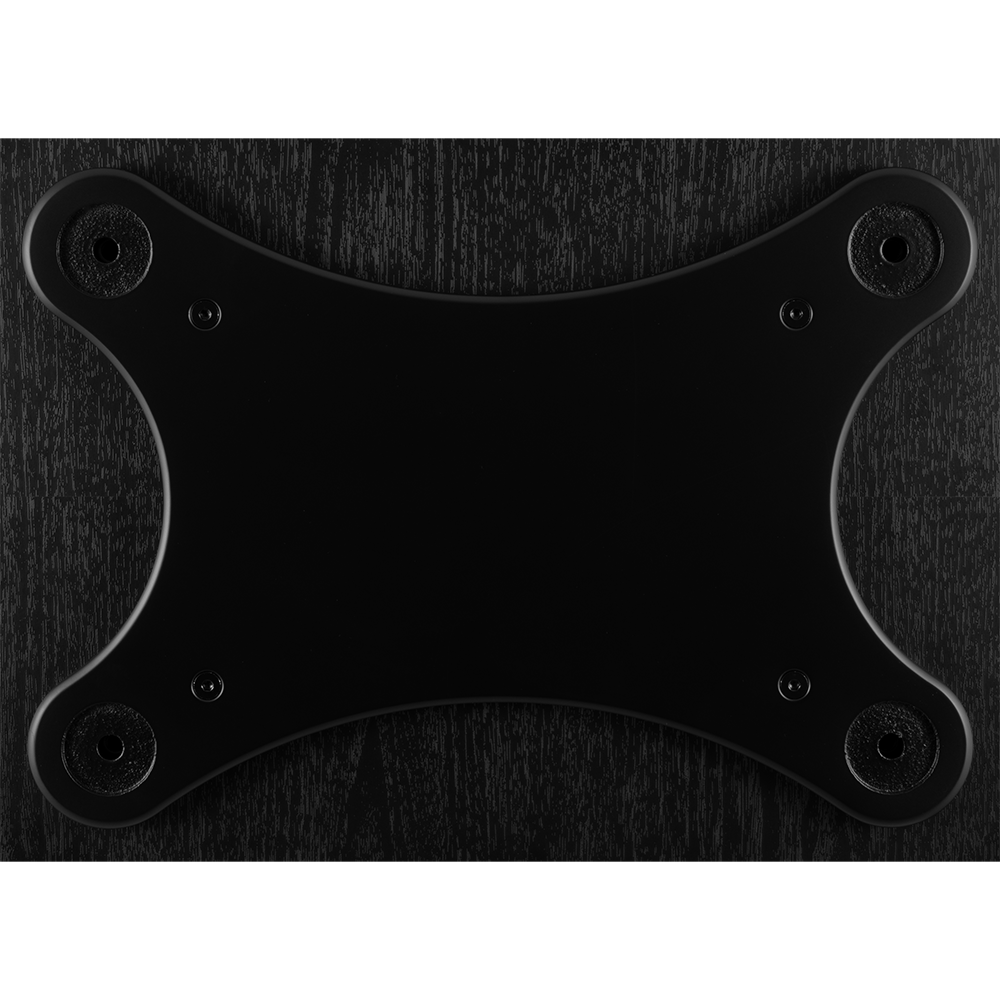

The Dynavoice X-Type Board is a bottom plate designed to allow you to use either soft damping feet or the included M8 acoustic feet. The Dynavoice X-Type Board also adds stability improving the integrity of the cabinet keeping vibrations to a minimum for an even better subwoofer experience.

  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12
  • Challenger CSB-V12

Download manual

Click below to download the manual for the product.

Download

Behind the Magic

After over 40 years of speaker development we are proud to show you what hides behind the detailed and rich sound.

Learn more

Reviews in hifi magazines

Since the first test of the Challenger M-65 our speakers have impressed
reviewers in every test!

Learn more

Specifications

Product Type Subwoofer
Series Challenger
Model CSB-V12

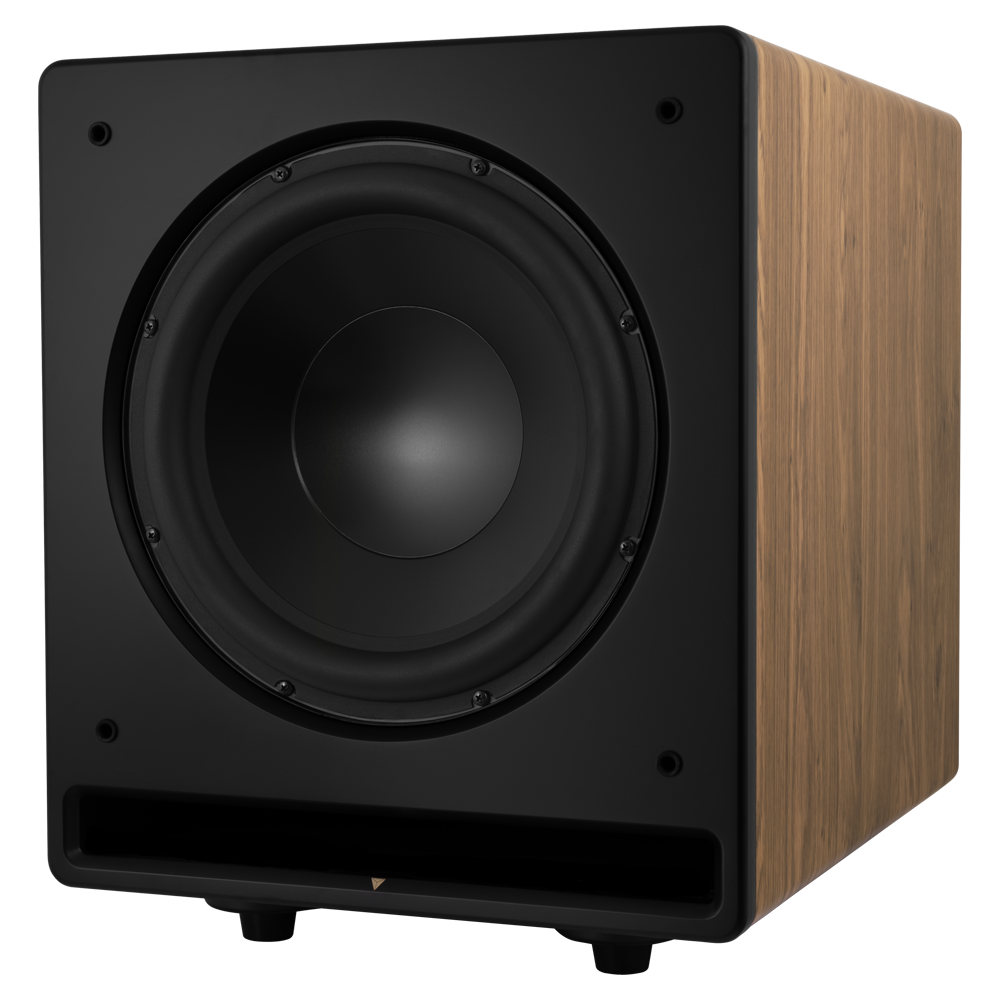

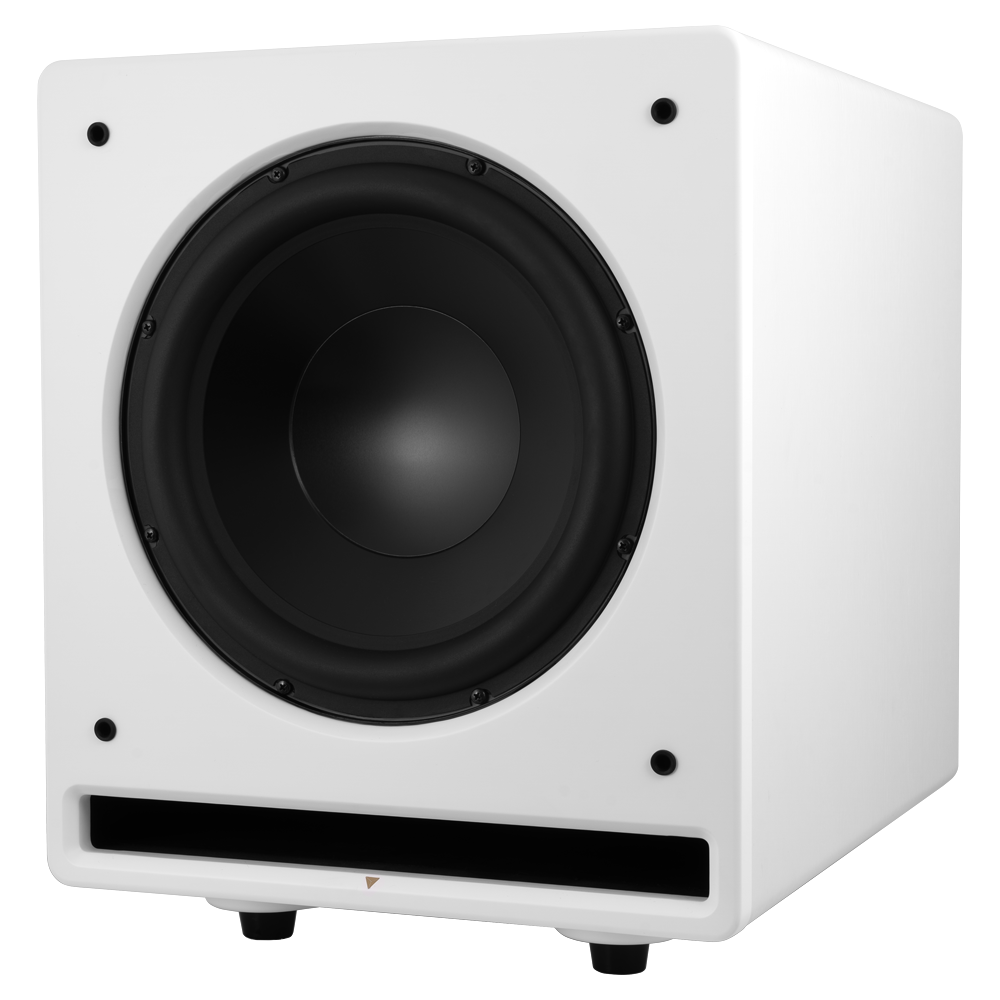

Available Colors Black, Oak, White
Enclosure Type Ported
Amplifier Power (RMS) 300 W
Amplifier Power (Max) 600 W
Frequency Range 30-150 Hz
Crossover Frequency 35-150 Hz
Woofer 12 inch
Dimensions (WxHxD) 400 x 469 x 548 mm
Weight 27.6 kg
